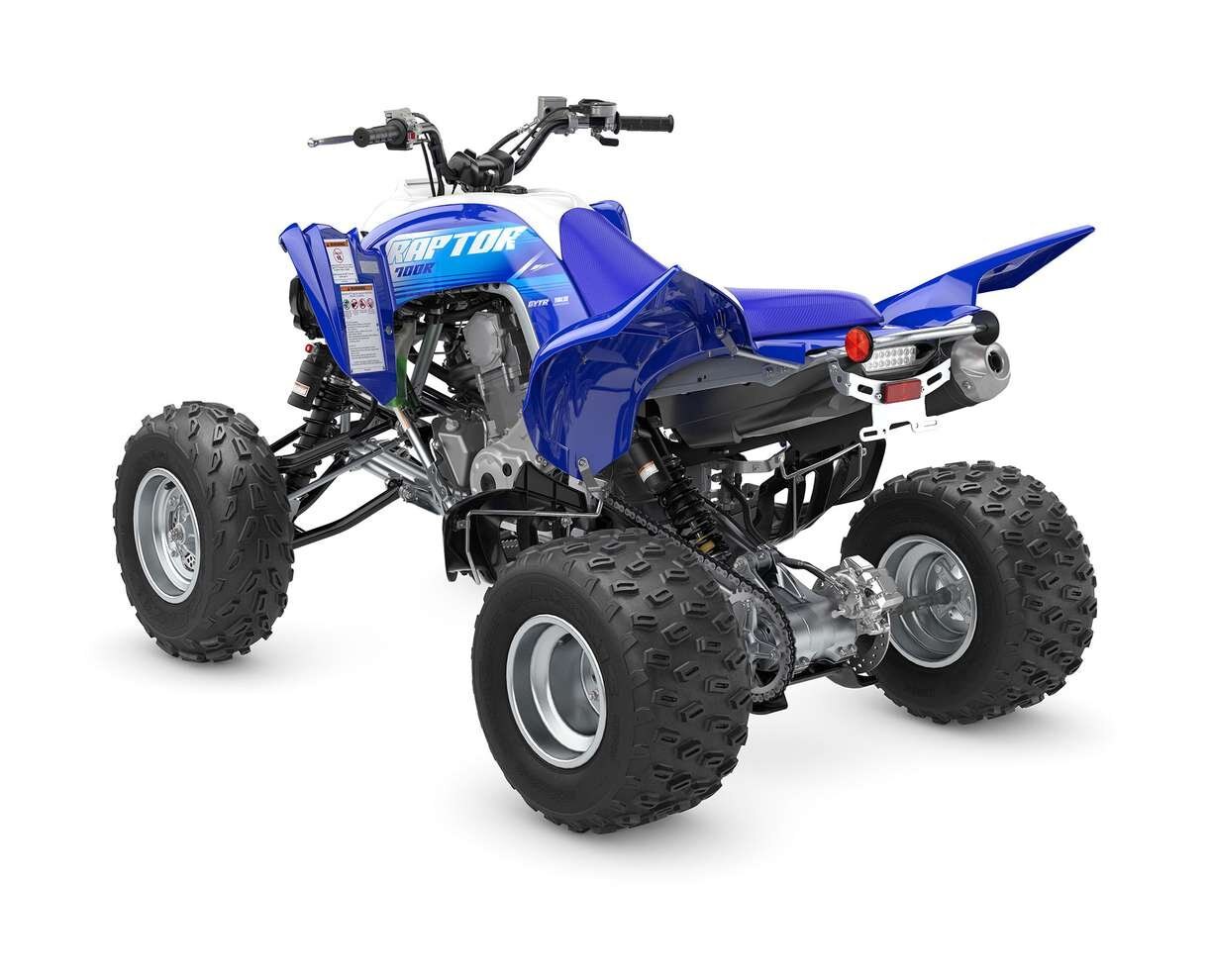

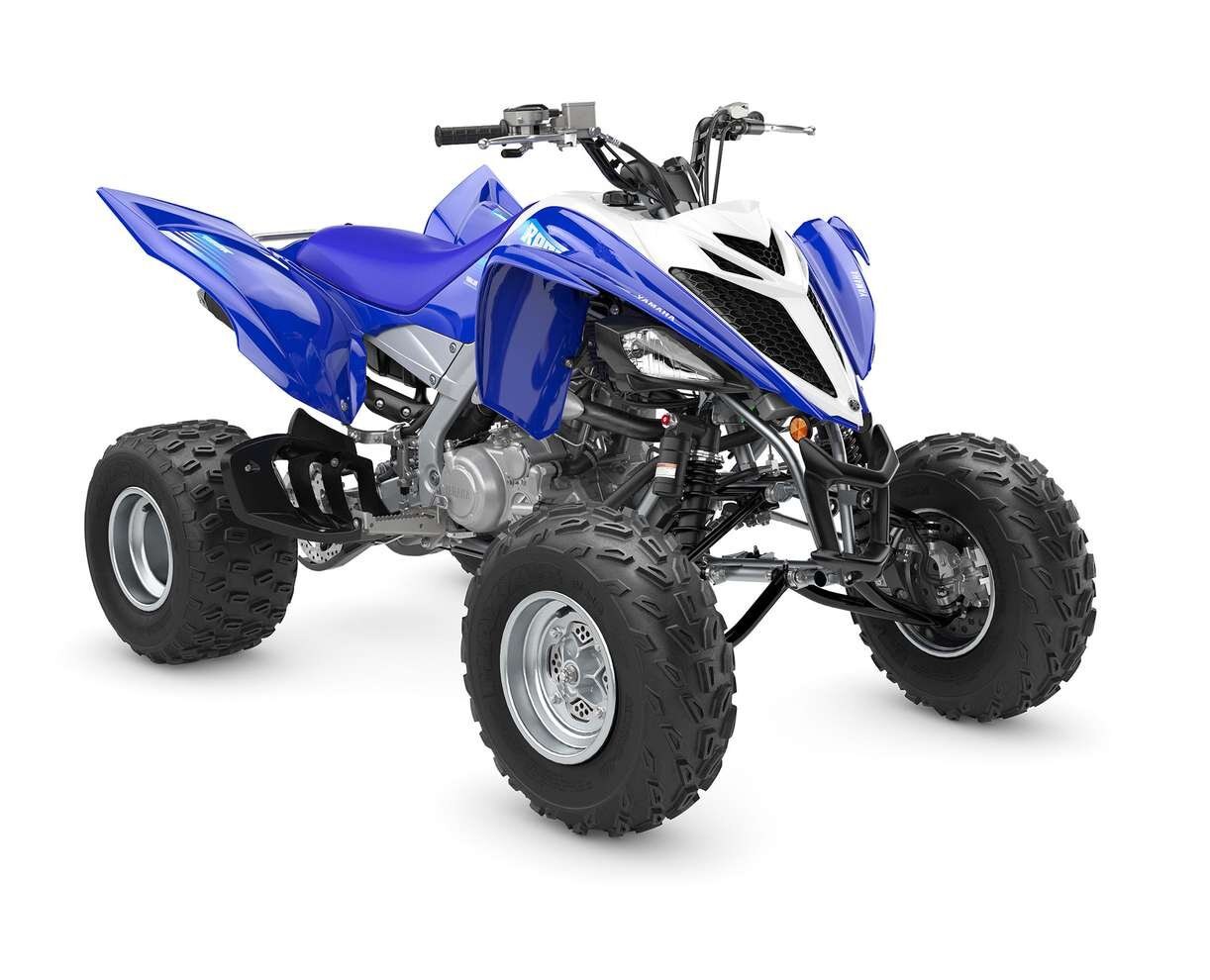

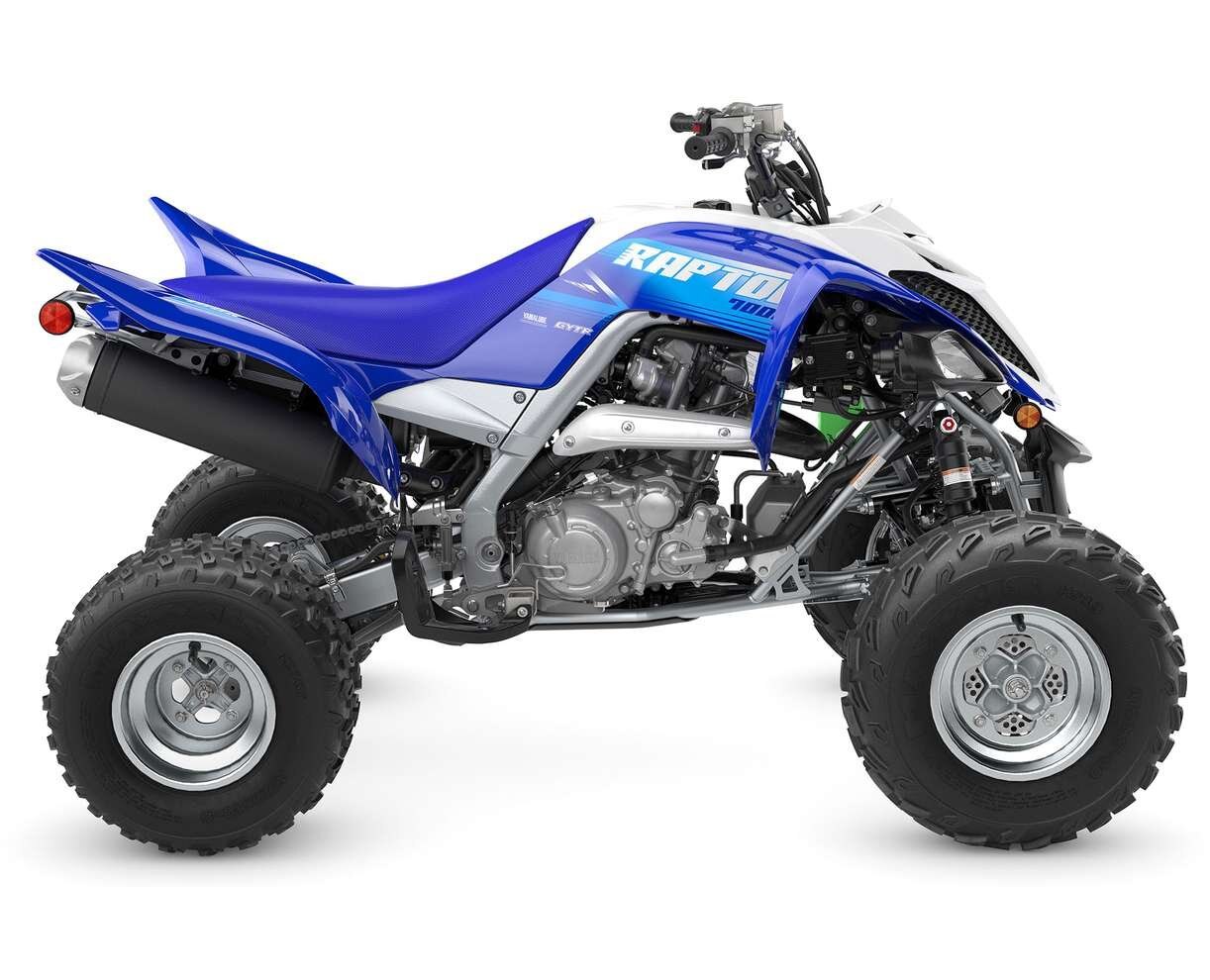

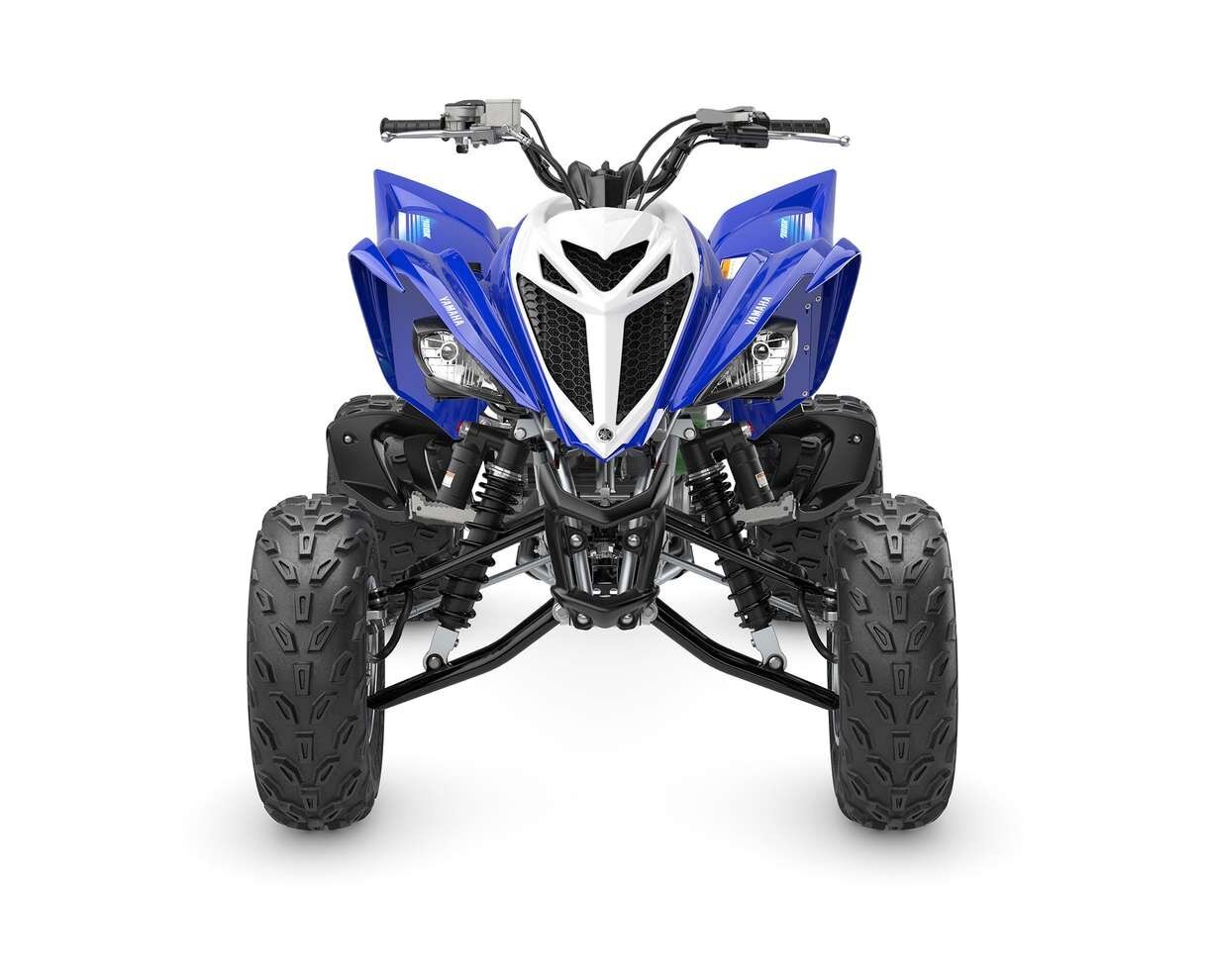

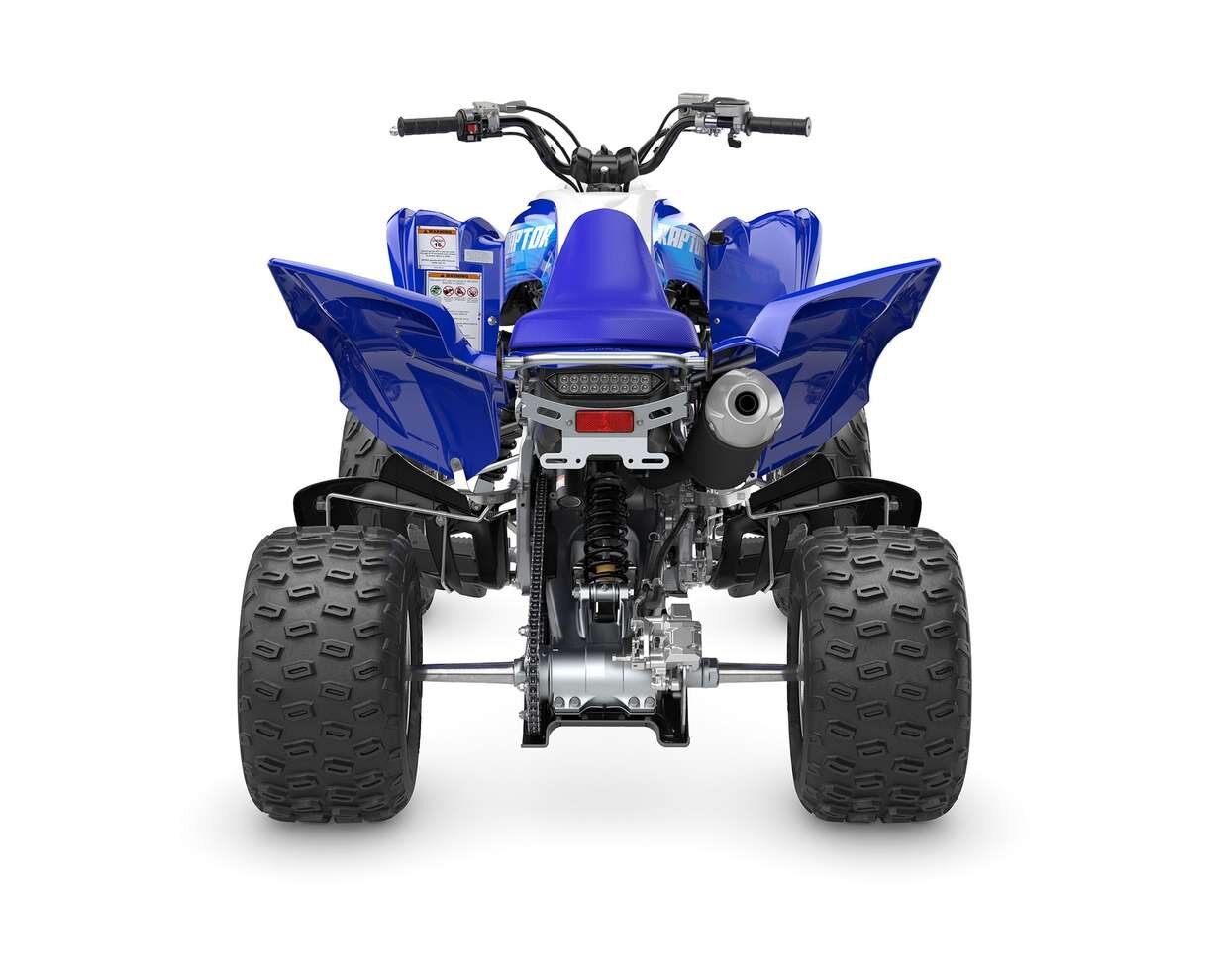

2027 Yamaha Raptor 700R Team Yamaha Blue

  • 2027 Yamaha Raptor 700R Team Yamaha Blue
  • 2027 Yamaha Raptor 700R Team Yamaha Blue
  • 2027 Yamaha Raptor 700R Team Yamaha Blue
  • 2027 Yamaha Raptor 700R Team Yamaha Blue
  • 2027 Yamaha Raptor 700R Team Yamaha Blue
Call for Price
 Get a Quote  Get Financed  Value a Trade  Contact Us  Book a Demo   Get Directions  Print
Overview

THE ULTIMATE SPORT ATV. Unmatched big-bore performance, superior comfort, and timeless style define the best-selling Sport ATV as the benchmark.

Specifications
Model
Raptor
Category Name
ATVs
Year
2027
Sale Type
New
Manufacturer
Yamaha
Color
Team Yamaha Blue
engine
ENGINE
Liquid cooled, SOHC, 4-valve, single
Ignition
TCI: Transistor Controlled Ignition
Starting
Electric
FINAL DRIVE
X-ring chain; 2WD
LUBRICATION
Dry sump
DISPLACEMENT
686cc
TRANSMISSION
5-speed with reverse; wet multiplate clutch
FUEL DELIVERY
Yamaha Fuel Injection (YFI), 44mm
BORE AND STROKE
102 x 84mm
COMPRESSION RATIO
10.0:1
chassis
TIRES (REAR)
Maxxis, AT20 x 10-9
BRAKES (REAR)
Single 200 mm disc / twin piston caliper
TIRES (FRONT)
Maxxis, AT22 x 7-10
BRAKES (FRONT)
Dual 161 mm discs / twin piston calipers
SUSPENSION (REAR)
Cast aluminum swingarm with piggyback high/low-speed compression, rebound and threaded preload adjustment, 257 mm (10.1") travel
SUSPENSION (FRONT)
Independent double wishbone with piggyback high/low-speed compression, rebound and threaded preload adjustment, 231 mm (9.1") travel
critical data
WIDTH
1,155 mm (45.5")
HEIGHT
1,115 mm (43.9")
LENGTH
1,845mm (72.6")
Warranty
6 months (unlimited mileage)
Colour(s)
Team Yamaha Blue
WHEELBASE
1,280mm (50.4")
WET WEIGHT
191kg (422 lb)
SEAT HEIGHT
830 mm (32.7")
FUEL CAPACITY
11 litres
Maximum Ground Clearance
113mm (4.4") rear sprocket protector / 240 mm (9.4") engine
highlights

2027 Yamaha Raptor 700R Team Yamaha BlueAggressive Style

Sharp, aggressive styling gives the Raptor 700R the menacing looks its performance demands. The Raptor 700R is ready to conquer dunes or trails.

2027 Yamaha Raptor 700R Team Yamaha BlueBig-Bore Power

Powered by the most potent 686cc, liquid-cooled, fuel-injected Raptor engine ever built, this big-bore Sport ATV delivers big torque throughout its rpm range—right off idle, through a fat mid-range and into a monstrous top-end.

2027 Yamaha Raptor 700R Team Yamaha BlueAdvanced Chassis

Head-turning power and a lightweight chassis come standard on the Raptor 700R. A hybrid steel-aluminum frame, Controlled-Fill aluminum sub-frame, and cast aluminum swingarm work together to produce a rigid structure and the lightest ATV in its class, without sacrificing handling or durability.

2027 Yamaha Raptor 700R Team Yamaha BlueRider-Friendly Features

A thick, comfortable seat delivers excellent ride comfort, while dual counter balancers, electric start, and reverse gear add next-level quality and convenience on the trail. When it's time to push the limits, the big-bore Raptor 700R rises to the occasion.

2027 Yamaha Raptor 700R Team Yamaha BlueAdvanced Suspension

The YFZ-inspired handling of the Raptor 700R provides a thrilling experience traversing the woods or dunes. With 9.1 inches of front travel and 10.1 inches in the rear, trail bumps fade away while the rider stays firmly in command. Power, precise handling, and a capable suspension make this machine ready to ride all day, every day.



key features
  • Powerful 686cc, liquid-cooled, fuel-injected engine
  •  Lightweight hybrid steel aluminum frame
  • Long A-arm front suspension / Swingarm rear suspension
  • YZ-Style piggyback shocks
  • Race-bred five-speed transmission with reverse
  • Sporty ergonomics with YZ-Style seat
  • Lightweight aluminum wheels wrapped in Maxxis® tires
  • Electric starter
  • Yamaha Racing Blue graphics



features & benefits

ENGINE

  • Big Bore Power
    • Powered by our most potent 686cc, liquid-cooled, fuel-injected Raptor engine ever, this big bore sport ATV produces big torque right off idle, transitioning into a fat mid-range, and monstrous top-end.
  • Advanced Fuel Injection
    • The Yamaha Fuel Injection (YFI) offers consistent and excellent engine performance in a wide range of conditions, elevations and temperatures.
  • Digital Ignition
    • The digital TCI with 32-bit electronic control unit controls fuel injection and ignition systems for consistent performance and fantastic throttle response.
  • Electric Starter
    • Reliable push-button electric start in any gear adds extra convenience.
  • Robust Transmission
    • Race-bred five-speed transmission with reverse, along with the Raptor 700R’s monstrous powerband, means there’s a choice of gears in just about all situations. YZ-spec ratchet shifter ensures smooth, resistance-free shifting under power while the heavy-duty clutch features a sturdy basket and plates designed to harness the power.
  • Excellent Serviceability
    • Easy-to-reach oil filter and tool-free air filter provide added convenience.

Chassis/Suspension

  • High-Tech Chassis
    • The state-of-the-art chassis combines a steel front section with a YZ-style piggyback rear shock that gives 10.1-inch wheel travel along with preload adjustment.
  • Advanced Suspension
    • YZ-style piggyback shocks are fully adjustable with high- and low-speed compression adjustability for maximum sport versatility along with preload and rebound adjustment. Front wheel travel is a plush 9.1 inches while the rear shock provides 10.1 inches of wheel travel.
  • Powerful Brakes
    • Twin aluminum-piston front disc brakes deliver tremendous stopping power. Discs are drilled, which helps reduce unsprung weight for excellent suspension compliance, with an additional twin-piston rear brake for maximum stopping power.
  • Aggressive Maxxis® Tires
    • High-performance front 22x10-9 and 20x10-9 rear Maxxis® tires with a specially designed tread pattern deliver superb, class-leading traction for razor-sharp handling in a variety of terrain and conditions.
  • Lightweight Wheels
    • Lightweight aluminum wheels help enhance suspension performance by reducing unsprung weight.
  • Wide Foot Pegs
    • Race-inspired 45mm serrated foot pegs provide excellent boot traction.
  • Strong Frame
    • The Controlled-Fill aluminum subframe and composite front grab bar are both light yet strong.

Additional Features

  • Sporty Ergonomics
    • The long, YZ-style seat allows maximum rider comfort and movement with superb sport-riding ergonomics.
  • High Visibility Lighting
    • Multireflector 30-watt Krypton headlights that are set back in the front cowl add the perfect, no-compromises sporting accent, and an LED taillight provides great visibility.
  • Large Fuel Tank
    • Large-capacity, 11 litre fuel tank and Yamaha Fuel Injection (YFI) mean more time on the trail between fill-ups.
  • Ergonomic Controls
    • Thumb throttle lever has a smooth shape for a feel riders will appreciate, creating less fatigue at the end of the day while the handlebar-mounted flip-type parking brake lever is simple to use
  • Yamaha Diagnostic Tool
    • For improved serviceability, the Raptor 700R is Yamaha Diagnostic Tool-ready.
